S0002002 - Hub and bearing puller hydraulic trolley Elvis Lightning 0816

!! ATTENTION !!
The trolley may only be transported after closing the drawers with the key.

Service extractor for re-hub / bearing
The hub / bearing is dismantled and mounted on the car without removing the ABS sensor

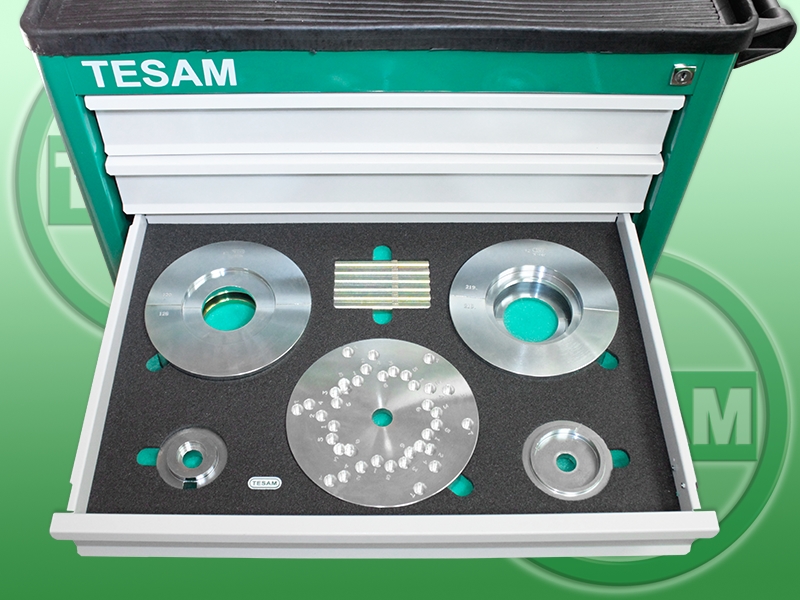

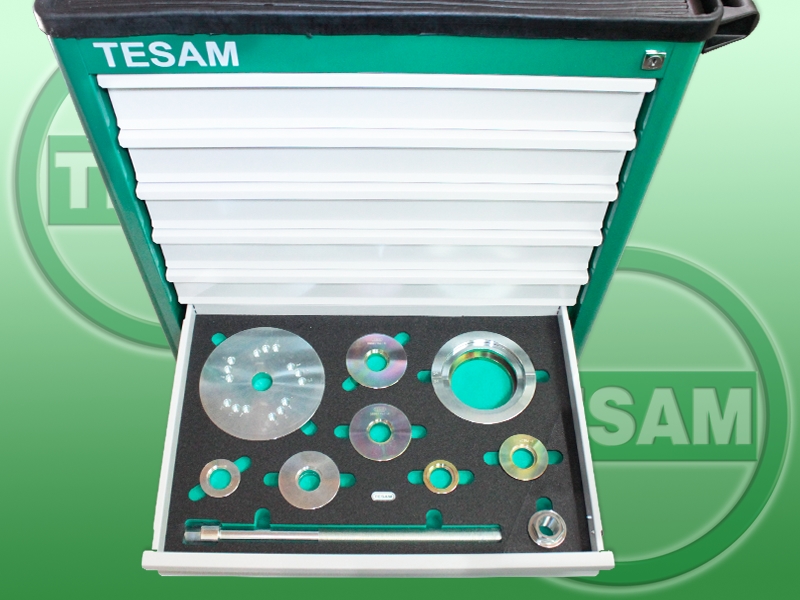

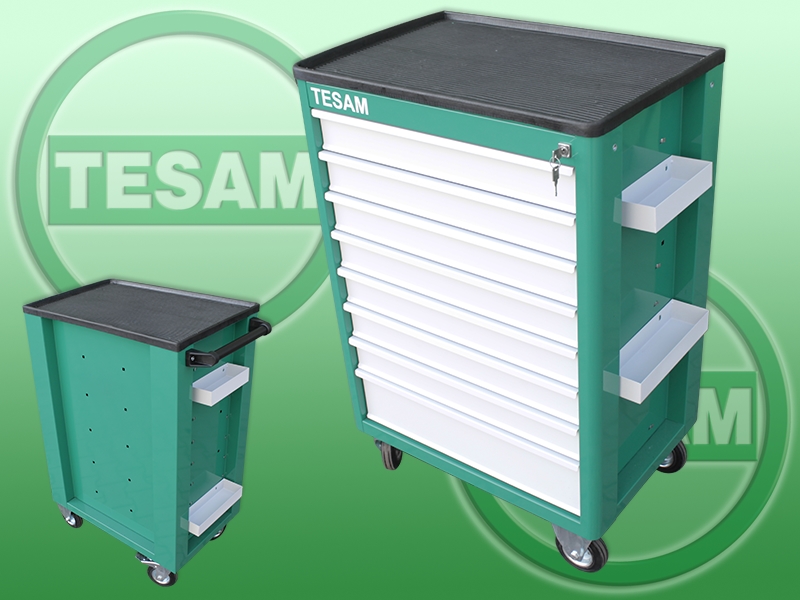

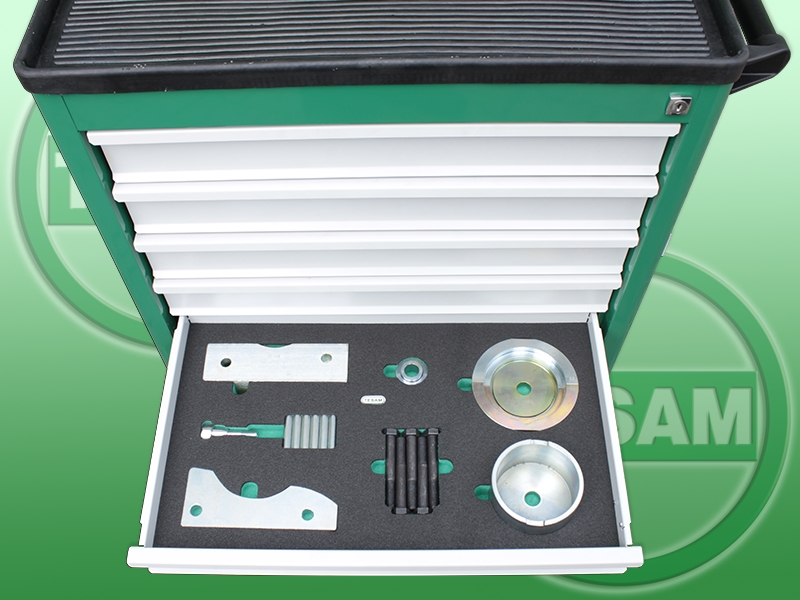

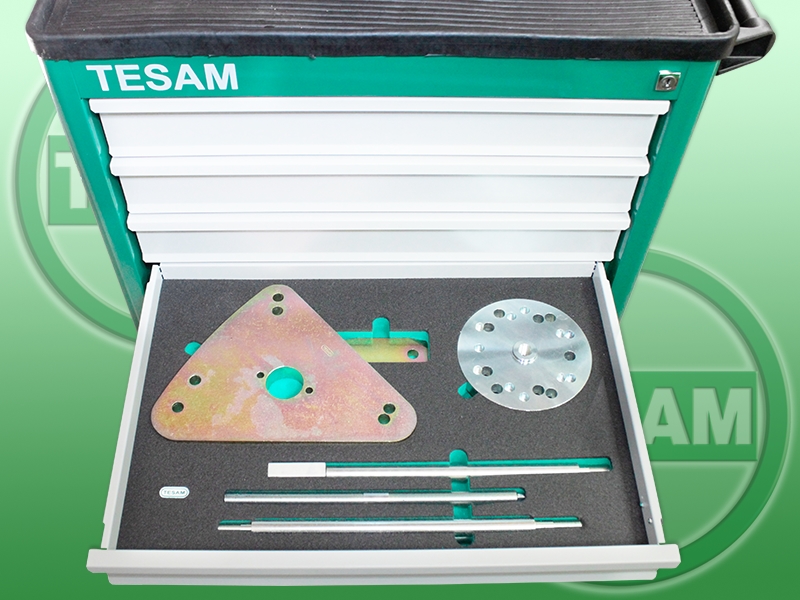

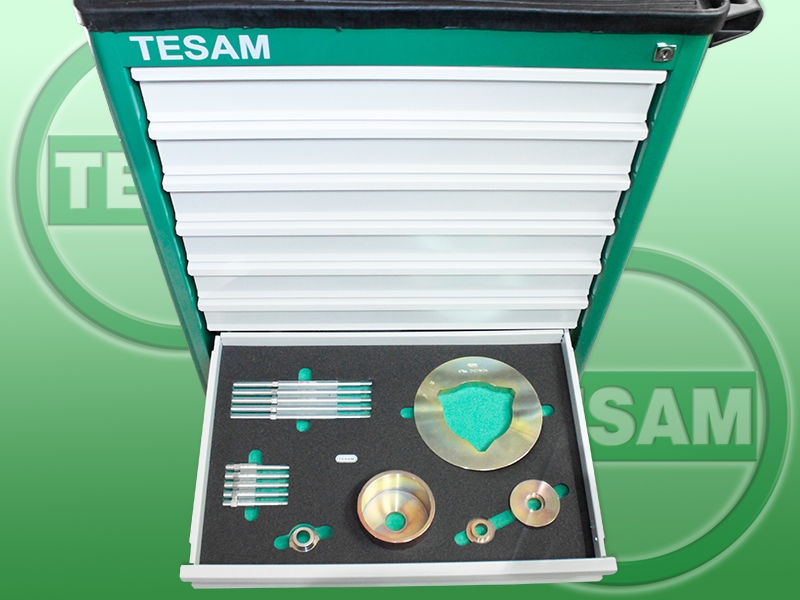

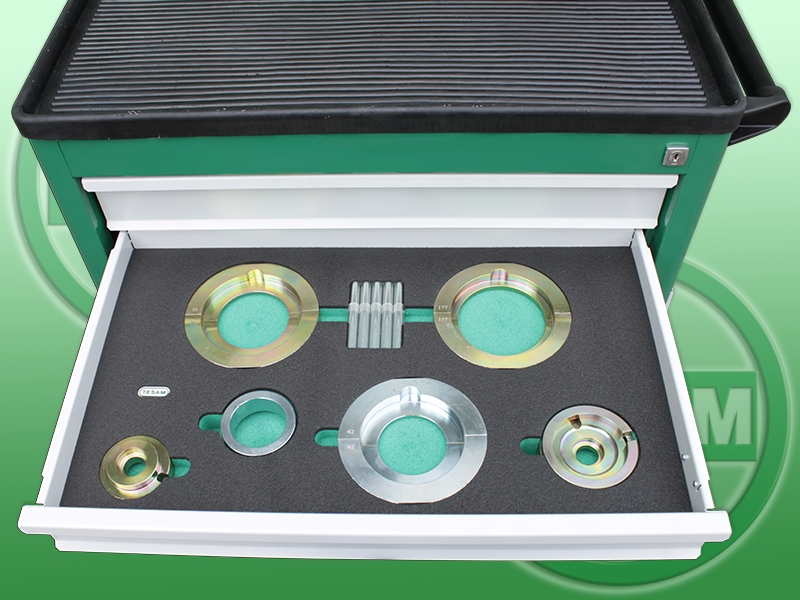

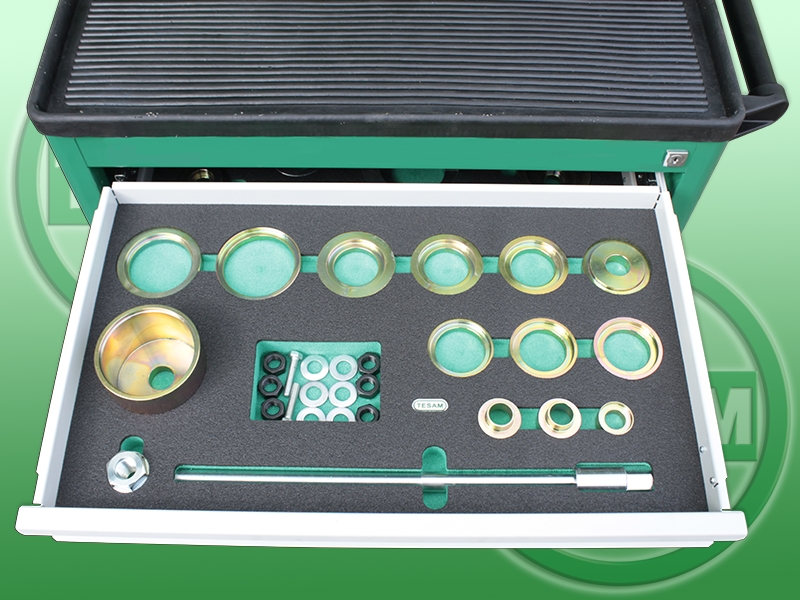

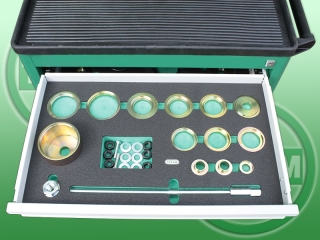

The product is packed in a metal trolley with wheels, equipped with 8 drawers.
Drawers equipped with locks that prevent several drawers from sliding out simultaneously.
Drawer inserts made of foam.
Each tool has an assigned place in the drawer.
Thanks to this solution, there is order in the workplace.

Application:
- Mercedes Sprinter
- Mercedes Vito
- Mercedes Viano
- Volkswagen Crafter
- Ford Mondeo, Focus
- VW T5 T6 - front and rear axle
- VW Polo, Skoda Fabia, Seat Ibiza - Fabia front axle also after modification of the steering knuckle
- Mazda 3
- Volvo C30 / C70 / S40 / V50
- Mercedes Sprinter "Twin"
- Fiat Ducato
- Citroen Jumper
- Ford Transit
- Renault Trafic, Master
- Opel Vivaro
- Opel Insignia

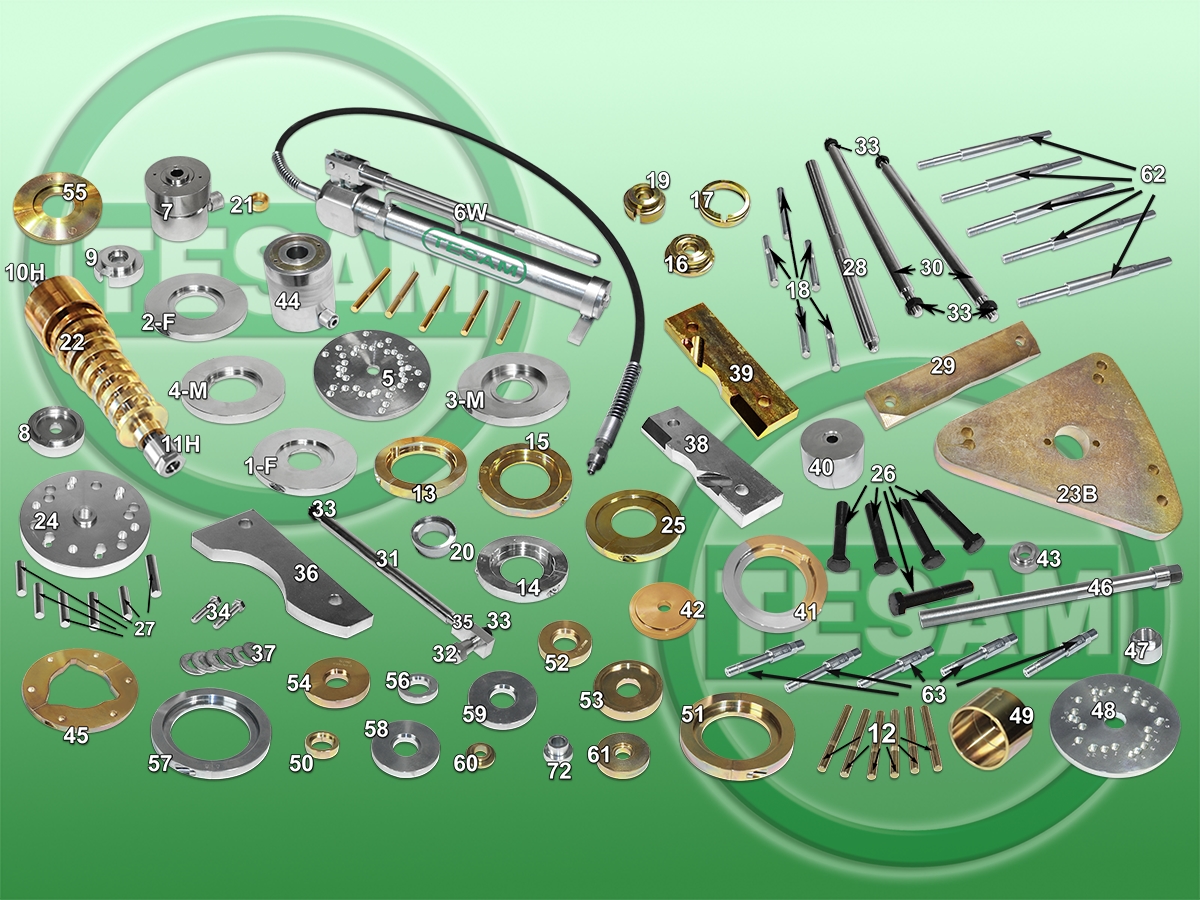

Set contains:
1-F - Adapter for pressing in bearings - Focus hubs
2-F - Adapter for ironing bearings - Focus hubs
3-M - Hub press adapter - Mondeo bearings
4-M - Hub ironing adapter - Mondeo bearings
5 - Instrument stand - VW (Polo, T5, T6), Seat (Ibiza), Skoda (Fabia), Ford (Focus, Mondeo, C-Max),
Volvo (C30, C70, S40, V50), Mazda 3, Mercedes (Vito, Viano)
(optional for expansion of Mitsubishi Colt VI, Smart Forfour I)

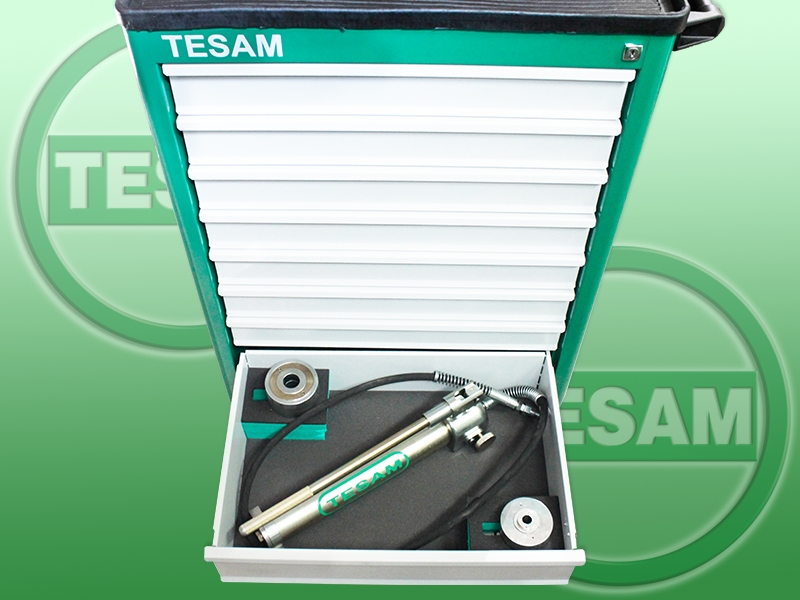

6W - Hydraulic pump
7 - Hydraulic cylinder
8 - Adapter for hub pressing - Focus, Mondeo bearings
9 - Adapter for ironing bearings - Focus, Mondeo hubs
10H - Puller screw
11H - Puller screw nut

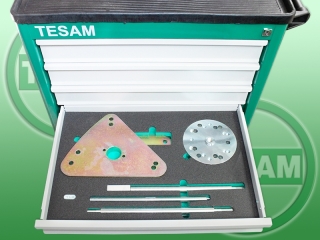

12 - Tripod pivot Ford Focus, Mondeo, Volvo, Mazda, Fiat Ducato, Citroen Jumper
(optional for expansion of the Iveco Daily 35)
13 - Adapter for ironing a bearing hub VW, T5, T6
14 - Hub press adapter - VW, Seat, Skoda bearings
15 - Adapter for pressing the hub - VW, Seat, Skoda bearings and for pressing the VW T5 T6 bearing
16 - Center ring for pressing the hub - Volkswagen bearings
17 - Spacer to press the hub - Volkswagen bearings
18 - Volkswagen, VW, Seat, Skoda tripod pivot (optional for expansion of Mitsubishi Colt VI, Smart Forfour I)
19 - Hub ironing ring - Volkswagen bearings
20 - Steering wheel spacer after Volkswagen modification
21 - Spacer ring for hub replacement
22 - A set of rings for ironing double row bearings on the front and rear axles
23 - Hub puller plate / bearings - Mercedes Sprinter, Vito, Viano, Volkswagen Crafter after 2006
24 - Hub puller / bearing stand
25 - Adapter for pressing in hub / bearing
26 - Tripod spacer screws
27 - Tripod spacing pins
28 - Tripod lead screw
29 - Yoke stabilizing plate for cars with ABS Twin
30 - Motherboard stamps
31 - Motherboard connector stamp
32 - Motherboard connector bolt
33 - Motherboard punch connector
34 - Cylinder centering screws
35 - Motherboard connector
36 - Yoke stabilizer
37 - Puller washers
38 - Yoke stabilizing plate for Mercedes Vito, Viano - Left side
39 - Yoke stabilizing plate for Mercedes Vito, Viano - Right side
40 - Adapter for ironing the rear swingarm bearing on a Mercedes Viano, Vito 2,2 CDI W639 after 2003
41 - Adapter for ironing the rear wishbone hub on a Mercedes Viano, Vito 2,2 CDI W639 after 2003
42 - Adapter for ironing the rear swingarm bearing on a Mercedes Viano, Vito 2,2 CDI W639 after 2003
43 - Adapter for ironing the bearing and pressing the rear wishbone hub on a Mercedes Viano, Vito 2,2 CDI W639 after 2003
44 - Tesam BUS hydraulic cylinder / Trucks
45 - Adapter for ironing the Opel Insignia hub
46 - Puller lead screw
47 - Tesam hydraulic puller nut
48 - Instrument stand - Renault (Trafic, Master), Opel (Vivaro, Insignia), Fiat (Ducato), Peugeot (Boxer, Jumper), Ford (Transit)
(optional for extension of IVECO Daily 35)
49 - Centering sleeve for
a) ironing the Trafic, Master, Vivaro, Ducato, Boxer, Jumper bearings
b) ironing the hub of Trafic, Master, Vivaro, Ducato, Boxer, Jumper
c) pressing Transit bearing
50 - Adapter for ironing a Ducato, Boxer, Jumper hub
51 - Thrust ring for ironing Ducato, Boxer, Jumper hubs
52 - Adapter for ironing bearings Ducato, Boxer, Jumper
53 - Adapter for pressing the hub and bearing Ducato, Boxer, Jumper
54 - Adapter for pressing the hub and bearing Ducato, Boxer, Jumper
55 - Hub press-in adapter / hub puller - ABS bearings Ford Focus, C-Max, Mazda 3, Volvo C30 C70 S40 V50
56 - Adapter for ironing bearings Trafic, Master, Vivaro
57 - Thrust ring for ironing hub the Trafic, Master, Vivaro
58 - Adapter for pressing the bearing hub and Trafic, Master, Vivaro
59 - Trafic bearing adapter, Vivaro
60 - Adapter for ironing a bearing from a Transit hub
61 - Adapter for ironing and pressing Transit bearings
62 - Stamps for ironing the hub and Transit bearing
63 - Stamps for ironing Transit brake discs
