S0001683 - Volkswagen / VW, Ford, Mazda, Volvo - Wheel hub replacement tool - hub extractor / bearing with ABS

Service extractor for re-hub / bearing

The hub / bearing is removed and installed on the car without removing the ABS sensor

Application:
Ford Mondeo MK4 / Focus MK2 / C-Max
Mazda 3
Volvo C30 / C70 / S40 / V50 / S60 II / S80 II / V60 / V70 III / XC60 / XC70 II
VW T5, T6 - front and rear axle
VW Polo, Skoda Fabia, Seat Ibiza - also Fabia front axle after modification of the steering knuckle

The manual / user manuals are in the next tab _^---->

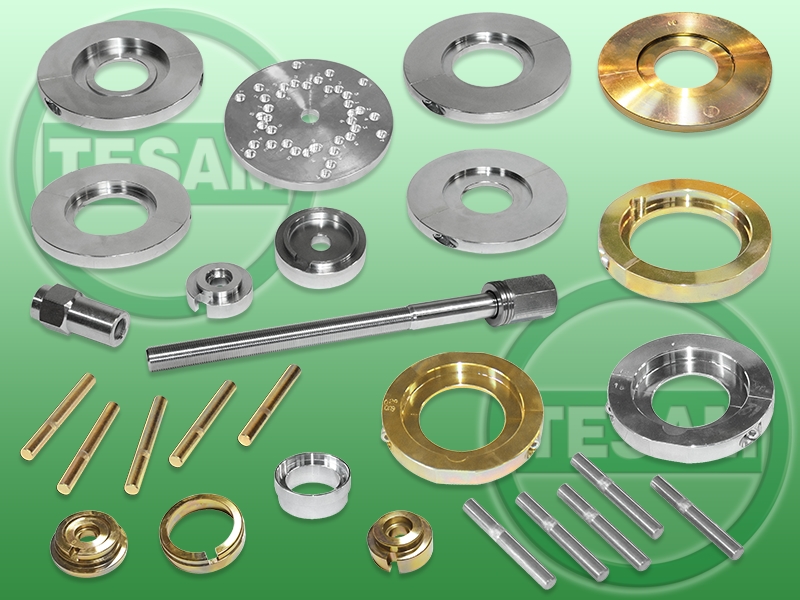

Set contains:
1-F - Hub press adapter - Focus, C-Max, Mazda 3, Volvo C30 / C70 / S40 / V50 bearings
2-F - Adapter for ironing bearings - Focus, C-Max, Mazda 3, Volvo C30 / C70 / S40 / V50 hubs
3-M - Hub pressing adapter - Mondeo bearings, Volvo S60 II / S80 II / V60 / V70 III / XC60 / XC70 II
4-M - Adapter for ironing bearings - Mondeo hubs, Volvo S60 II / S80 II / V60 / V70 III / XC60 / XC70 II
5 - Instrument stand - VW (Polo, T5, T6), Seat (Ibiza), Skoda (Fabia), Ford (Transit, Focus, Mondeo, C-Max),
Volvo (C30, C70, S40, V50), Mazda 3, Mercedes (Vito, Viano)
(optional for extension Mitsubishi Colt VI, Smart Forfour I)
8 - Spacer for pressing the hub - Focus, Mondeo, Volvo bearings
9 - Spacer ring for ironing bearings - Focus Mondeo hubs, Volvo
10R - Puller screw
10RŁ - Plain bearing
11R - Puller screw nut
12 - Ford tripod bolt
13 - Adapter for ironing a bearing hub VW, T5, T6
14 - Hub press adapter - VW, Seat, Skoda bearings
15 - Adapter for ironing hub - bearings (VW, Seat, Skoda and ironing bearings VW T5 T6
16 - Center ring for pressing the hub - Volkswagen bearings
17 - Spacer to press the hub - Volkswagen bearings
18 - Volkswagen tripod pivot
19 - Hub ironing ring - Volkswagen bearings
20 - Steering wheel spacer after Volkswagen modification
55 - Hub press-in adapter / hub puller - ABS bearings Ford Focus, C-Max, Mazda 3, Volvo C30 C70 S40 V50 - replacement bearings
