S0001430 - Mercedes, Ford, Mazda, Volvo, Volkswagen / VW - Hub puller and hydraulic bearings

Service hub / bearing press
Disassembly and assembly of the hub / bearing takes place on the vehicle without removing the ABS sensor
The product is packed in a metal case on wheels, equipped with 3 handles for transport in the lower and skew position.

Application:
- Mercedes Sprinter
- Mercedes Vito - front and rear
- Mercedes Viano - front and rear
- Volkswagen Crafter
- VW T5 T6 - front and rear axle
- VW Polo, Skoda Fabia, Seat Ibiza - also Fabia front axle after modification of the steering knuckle
- Ford Mondeo MK4 / Focus MK2 / C-Max
- Mazda 3
- Volvo C30 / C70 / S40 / V50 / S60 II / S80 II / V60 / V70 III / XC60 / XC70 II

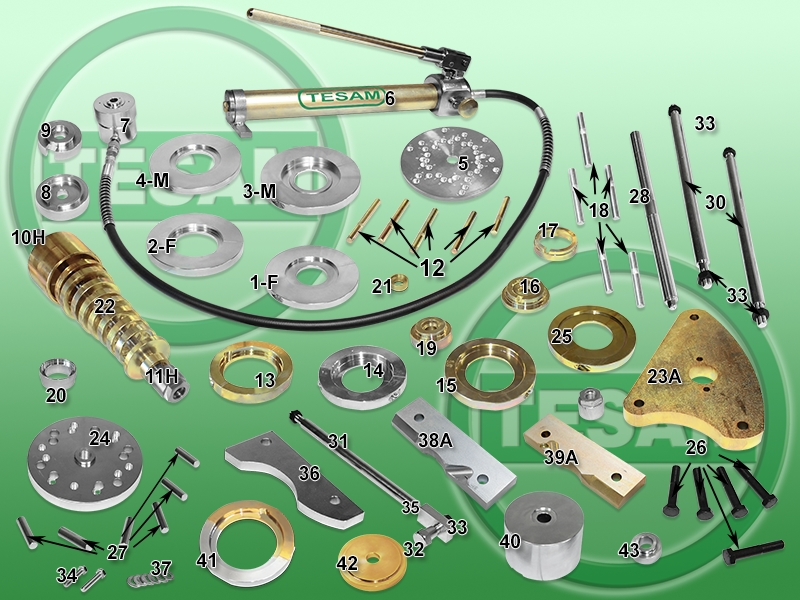

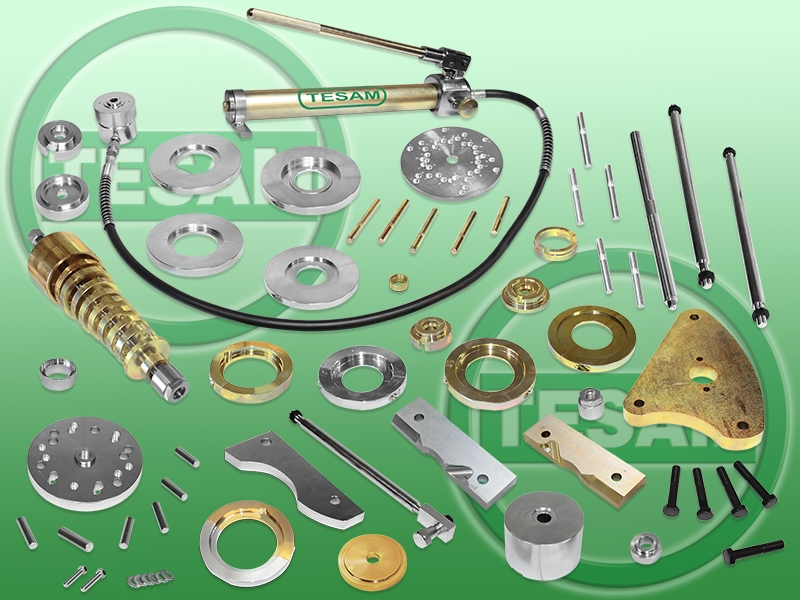

Set contains:
1-F - Hub press adapter - Focus, C-Max, Mazda 3, Volvo C30 / C70 / S40 / V50 bearings
2-F - Adapter for ironing bearings - Focus, C-Max, Mazda 3, Volvo C30 / C70 / S40 / V50 hubs
3-M - Hub pressing adapter - Mondeo bearings, Volvo S60 II / S80 II / V60 / V70 III / XC60 / XC70 II
4-M - Adapter for ironing bearings - Mondeo hubs, Volvo S60 II / S80 II / V60 / V70 III / XC60 / XC70 II
5 - Instrument stand
6 - Hydraulic pump
7 - Hydraulic cylinder
8 - Adapter for hub pressing - Focus, Mondeo bearings
9 - Adapter for ironing bearings - Focus, Mondeo hubs
10H - Puller screw
11H - Puller screw nut
12 - Ford tripod bolt
13 - Adapter for ironing a bearing hub VW, T5, T6
14 - Hub press adapter - VW, Seat, Skoda bearings
15 - Adapter for ironing hub - bearings (VW, Seat, Skoda and ironing bearings VW T5 T6
16 - Center ring for pressing the hub - Volkswagen bearings
17 - Spacer to press the hub - Volkswagen bearings
18 - Volkswagen tripod pivot
19 - Hub ironing ring - Volkswagen bearings
20 - Steering wheel spacer after Volkswagen modification
21 - Spacer ring for hub replacement
22 - A set of rings for ironing double row bearings on the front and rear axles
23A - Hub puller main / bearings
24 - Hub puller / bearing stand
25 - Adapter for pressing in hub / bearing
26 - Tripod spacer screws
27 - Tripod spacing pins
28 - Tripod lead screw
30 - Motherboard stamps
31 - Motherboard connector stamp
32 - Motherboard connector bolt
33 - Motherboard punch connector
34 - Cylinder centering screws
35 - Motherboard connector
36 - Yoke stabilizer
37 - Puller washers
38 - Yoke stabilizing plate for Mercedes Vito, Viano - Left side
39 - Yoke stabilizing plate for Mercedes Vito, Viano - Right side
40 - Adapter for ironing the rear swingarm bearing on a Mercedes Viano, Vito 2,2 CDI W639 after 2003
41 - Adapter for ironing the rear wishbone hub on a Mercedes Viano, Vito 2,2 CDI W639 after 2003
42 - Adapter for ironing the rear swingarm bearing on a Mercedes Viano, Vito 2,2 CDI W639 after 2003
43 - Adapter for ironing the bearing and pressing the rear wishbone hub on a Mercedes Viano, Vito 2,2 CDI W639 after 2003
