S0001093 - Mercedes, Volkswagen / VW, Ford, Volvo, Mazda - Hub puller and hydraulic bearings

Service hub / bearing press
Disassembly and assembly of the hub / bearing takes place on the vehicle without removing the ABS sensor

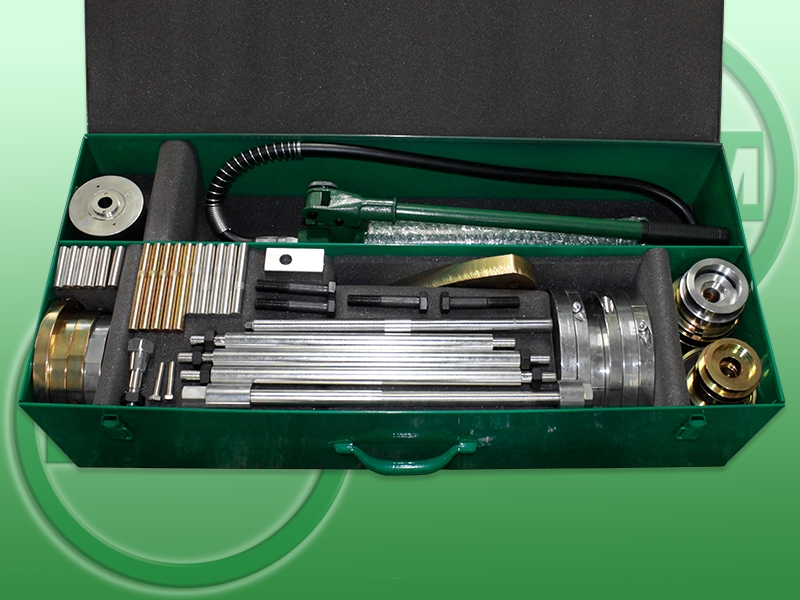

The product is packed in a metal case on wheels, equipped with 3 handles for transport in the lower and skew position.

Application:
Mercedes Sprinter
Volkswagen Crafter
VW T5 T6 - front and rear axle
VW Polo, Skoda Fabia, Seat Ibiza - front axle also Fabia after modification of the crossover
Ford Mondeo MK4 / Focus MK2 / C-Max
Volvo C30 / C70 / S40 / V50 / S60 II / S80 II / V60 / V70 III / XC60 / XC70 II
Mazda 3

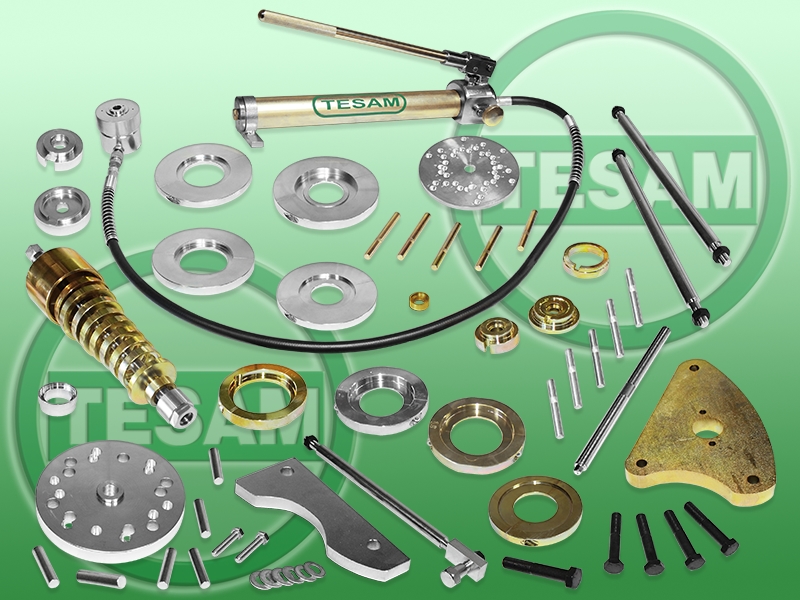

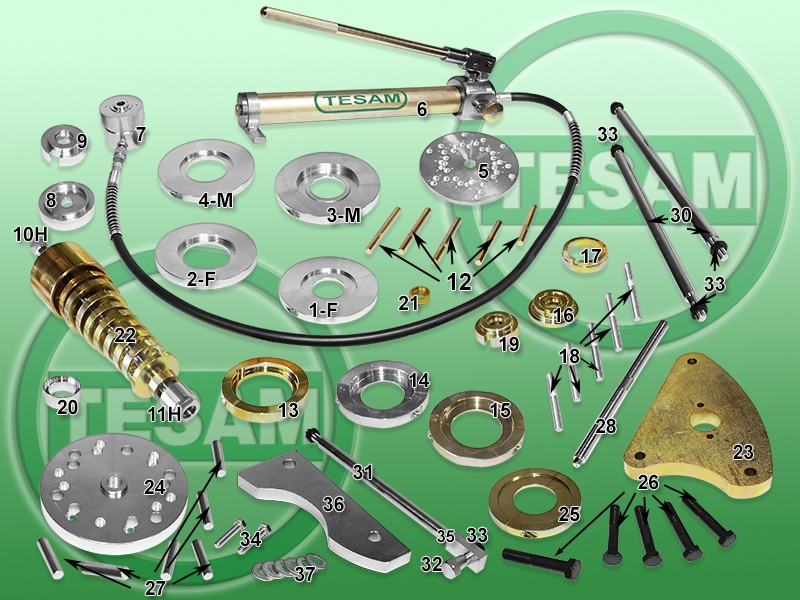

Set contains:
1-F - Adapter for pressing in bearings - Focus hubs
2-F - Adapter for ironing bearings - Focus hubs
3-M - Hub press adapter - Mondeo bearings
4-M - Hub ironing adapter - Mondeo bearings
5 - Instrument stand
6 - Hydraulic pump
7 - Hydraulic cylinder
8 - Adapter for hub pressing - Focus, Mondeo bearings
9 - Adapter for ironing bearings - Focus, Mondeo hubs
10H - Puller screw
11H - Puller screw nut
12 - Ford tripod distance plate
13 - Adapter for ironing the bearing hubs VW, T5, T6
14 - Hub drive adapter - VW, Seat, Skoda bearings
15 - Hub press fitting adapter - bearings (VW, Seat, Skoda and VW T5 T6 bearing pressings)
16 - Center ring for pressing the hub - Volkswagen bearings
17 - Spacer ring for pressing the hub - Volkswagen bearings
18 - Volkswagen tripod distance pin
19 - Hub pressing ring - Volkswagen bearings
20 - Cross-over distance ring after Volkswagen modification
21 - Spacer ring for replacing hubs
22 - Ring set for pressing double row bearings on the front and rear axles
23A - Hub hub puller / bearings main plate
24 - Hub puller / bearing
25 - Hub / bearing insertion adapter
26 - Tripod distance screws
27 - Spacers of the tripod
28 - Tripod tripod screw
29 - Correction nut
30 - Motherboard stamps
31 - Main board connector stamp
32 - Main board connector screw
33 - Main board punch connector
34 - Centering screws for the actuator
35 - Main board connector
36 - Yoke stabilizer
37 - Puller washers
