M351 - Fuel pressure tester 0-8 bar

Device Description:
The sampler is designed to measure fuel pressure in petrol injection systems. Can be used for most types of injection systems. Among others in such cars: Audi. BMW. Honda. Hyundai. Mazda. Mercedes. Peugeot. Porsche. Seat. Skoda. Suzuki. Toyota. VW. Volvo.

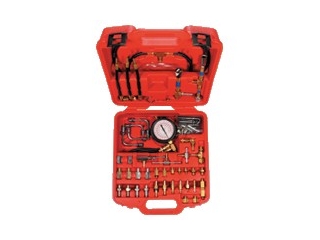

Package Contents:
- cap 1/4"
- 1/4" 7 mm - 2pcs.
- 1/4" 8 mm - 2pcs.
- Manometer with a range of 0 - 3.5 bar with a diameter of 41 mm
- Pressure gauge of 0 - 7 bar with a diameter of 63 mm connected to the M8 x 1 combined junction and 8 mm straight with a ball valve.
- Clamping band - 4 pcs.
- Flexible hose 8 mm - length 50 mm
- Flexible hose 7 mm - length 50 mm
- Ford spring-loaded latch adapter with M10x1.25 valve
- 1/4" internal tee with M10x1,25 valve
- 15 mm x 1.5 in. For GM with M10 x 1,25 valve
- Adapter with two quick couplings for GM with M10x1.25 mm valve
- Adapter with quick coupler and internal connection 15 mmx 1.5 mm for GM with M10x1.25 valve
- Ford adapter with M10x1.25 mm valve
- Flexible hose 6 mm length 1450 mm Ford
- Flexible hose with M10x1.25 mm valve length 350 mm
- Flexible hose with M10x1.25 mm internal connector. And 10x1 mm externally. To Bosch C.I.S. 650 mm long
- Base tee with 1600 mm total length, flow ball valve, drain valve with 1/4 "thread and two 12x1.5 mm internal diameter.
- Adapter for M8 x 1 external joints. With M10 x 1.25 valve
- Adapter for M10 x 1 ring joints. With M10 x 1.25 valve
- Adapter for ring connectors M12 x 1.25 outside. With M10 x 1.25 valve
- Adapter for M12 x 1.5 mm external ring connectors. With M10 x 1.25 valve
- 6x1 mm adapter with M10 x 1.25 valve (Honda)
- Reduction M12 x 1.5 outside M10 x 1 outside.
- Reduction M12 x 1.5 outside M10 x 1 internal
- Reduction M12 x 1.5 outside M8 x 1 internal
- Reduction M12 x 1.5 outside M8 x 1 outside. - 2 pcs.
- Reduction M12 x 1.5 outside M8 x 1 outside. - length 75 mm
- Reduction M12 x 1.5 external 5/8" x 1.5 external.
- 5/8" x 1.5 inner sleeve
- Reduction M12 x 1.5 external M16 x 1.5 mm outside. (Ford Scorpio and others)
- M16 x 1.5 inner (Ford Scorpio and others)
- Closure M14 x 1.5 internal
- Nyx M12 x 1.5 outside M14 x 1.5 outside.
- inner sleeve 1/4"
- Nyx external M12 x 1.5 x 1/4" external.
- Multifunctional junction 6 - 10 x M12 x 1.5
