91230000 - Diesel - Pressure Gauge / Probe Type: SPCS-50 SK "Master"

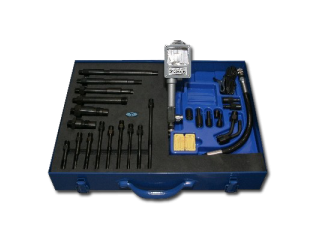

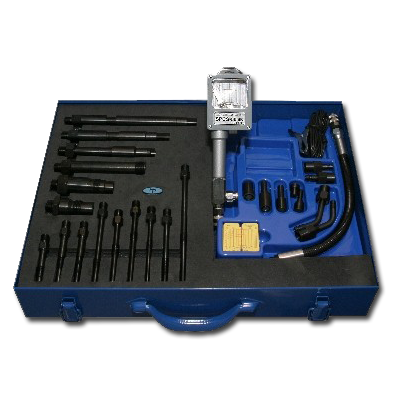

SPCS - 50 SK "Master" set - compression pressure gauge for diesel engines with recording of the measurement with quick coupler connections.

Measuring range: 1.0 to 5.0 MPa (10 to 50 bar)

The measurement results are recorded on the diagram that the meter is equipped with.
One diagram can save 8 results of compression pressure measurements in diesel engine cylinders.

The measurement is made using the adapters included in the set.
The measurement can be made through the glow plug hole or through the injector hole on diesel engines.
The equipment includes measuring tips (adapters) for the most popular car brands.
We offer over 100 different types of adapters that can be purchased separately or in sets.
The set includes 15 pcs. of adapters mounted in place of glow plugs and injectors for the most popular models of Diesel engines.

Connectors:
- Compression measuring device with a handle equipped with a starter switch and a vent (drain) valve 912 201 00 (91220100)
- Pressure hose with check valve, length 360 mm 912 202 00 (91220200)
- Adapter (measuring tips) replacing the atomizer:
    A - 912 011 00 (91201100),
    B - 912 012 00 (91201200),
    D - 912 014 00 (91201400),
    E - 912 015 00 (91201500),
    F - 912 016 00 (91201600).
- Electric cables for starting the engine 912 404 00 (91240400)
- Angle connector M12 x 1.5 SK 912 203 00 (91220300)
- Angled connector M14 x 1.5 SK 912 204 00 (91220400)
- Quick-release adapter M12 x 1.5 SK 912 205 00 (91220500)
- Quick-release adapter M14 x 1.5 SK 912 206 00 (91220600)
- Registration diagrams 100 pieces 609 195 00 (60919500)

Measuring adapters instead of glow plugs 11 pcs:
2S - 912 450 02 (91245002)
Opel, Renault, Peugeot, DB, VW, Ford, Seat, Skoda, Citroen, Land Rover, Alfa and all older non-Japanese cars.

5S - 912 450 05 (91245005)
Missubishi, Nissan, Toyota, Ford Maverick, Isuzu, Kia, Hyundai

6S - 912 450 06 (91245006)
Audi, Opel, Seat, Ford, Hyundai, Kia, Mitsubishi Pajero, Nissan, Suzuki, Toyota Hiace, Land Cruiser, Isuzu, Mazda

8S - 912 450 08 (91245008)
VW, Audi, Seat, Skoda, Alfa, Chrysler, Citroen, Peugeot, Fiat, Ford, Honda, Land Rover, Mitsubishi, Nissan, Opel, Renault, Rover, Volvo

25S - 912 450 25 (91245025)
Mercedes, Chrysler, Land Rover

26S - 912 450 26 (91245026)
Audi, VW, Seat, Skoda, Citroen, Peugeot, Fiat

30S - 912 450 30 (91245030)
Ford, Citroen

36S - 912 450 36 (91245036)
Fiat, Opel, Lancia, Citroen, Peugeot, Ford, Suzuki, Mini

49S - 912 450 49 (91245049)
Alfa Romeo, Fiat, Lancia, Opel, Saab

52S - 912 450 52 (91245052)
Alfa, Fiat, Citroen, Lancia, Opel, Chevrolet

71S - 912 450 71 (91245071)
Audi, VW, Seat, Skoda, Mitsubishi

Measuring adapters instead of injectors 4 pcs:
16W - 912 450 16 (91245016)
VW, Audi, Seat, Skoda

42W - 912 450 42 (91245042)
Renault

44W - 912 450 44 (91245044)
Mercedes

75W - 912 450 75 (91245075)
Mercedes

Packaging: metal suitcase
