91151600 - VW, Skoda, Audi, Seat 1.5 TSI Timing tools for belt replacement from 2017 >

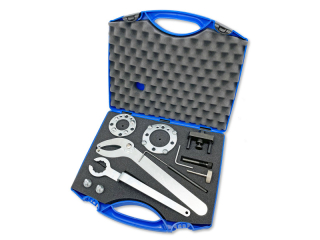

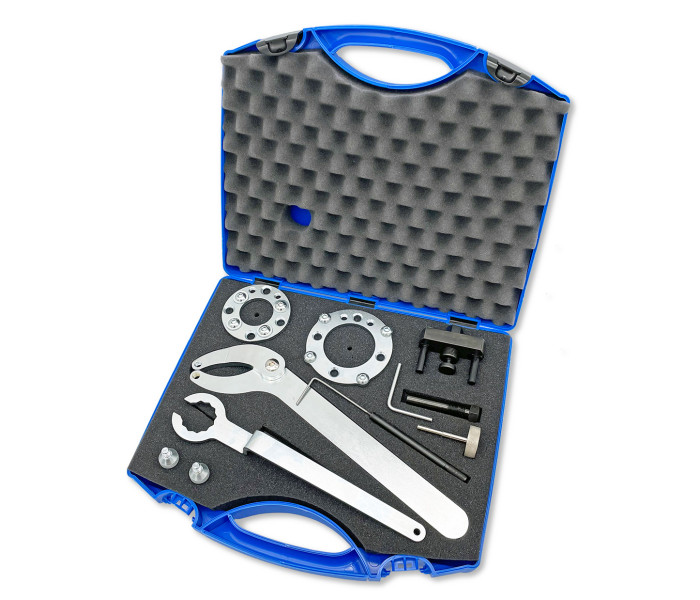

Timing tool kit VW, Skoda, Audi, Seat 1.5 TSI + 1.5 eTSI for replacing the timing belt

E 211 Evo engines from 2017 to present
PCA: 110 hp (150 kW) from 2018 (VW, Skoda, Audi, SEAT)
DPBA: 131 hp (96 kW) from 2019 (VW, SEAT)
DPBC: 114 hp (84 kW) from 2021 (VW)
DPBE: 131 hp (96 kW) from 2019 (VW)
DACA: 131 hp (96 kW) from 2017 (VW, SEAT)
DACB: 131 hp (96 kW) from 2019 (VW, SEAT)
DADA: 110 HP (150 kW) from 2017 (VW, SKODA, AUDI)
DFYA: 110 HP (150 Kw) from 2022 (VW, SKODA, AUDI, SEAT) (1.5 eTSI engines)
DHFA: 131 HP (96 Kw) from 2018 ( VW, SKODA, AUDI, SEAT )

The kit includes tools to replace the original OEM tools:
  1. HP 911 025 17 Crankshaft Lock OEM T10340
  2. HP 911 515 05 Rear Sprocket Camshaft Lock OEM T10504/1
  3. HP 911 551 10 Exhaust camshaft adjuster retainer cap OEM T10554
  4. HP 911 551 02 Socket wrench as above (3) OEM T10172
  5. HP 911 360 10 Rear sprocket puller in timing OEM T10221A
  6. HP 911 400 25 Accessory belt tensioner lock without start-stop OEM T10060A
  7. HP 911 400 22 Auxiliary belt tensioner lock with start-stop OEM T40098
  8. HP 911 560 00 Key to the belt pulley. crankshaft OEM T10475
  9. HP 911 560 10 Intake camshaft adjuster retainer cap OEM T10575
10.HP 911 505 00 Tensioner pulley tightening wrench OEM T10499A

Complementary tools (not included)
HP 911 560 00 Wrench for belt pulley crankshaft OEM T10475

Application in Volkswagen cars:
DPCA 150 hp engine
Arteon (3H7) 2019-2020
Arteon (3H8/3H9) 2020-2022 >
Golf SV/Sportsvan (AN1) 2019-2021
Golf VII (BQ1) 2019-2020
Golf VII Estate (BV5) 2018-2021
Golf VIII (CD1) 2020-2022 >
Golf VIII Estate (CG5) 2020-2022 >
Passat (CB2/CB5) 2019-2022 >
Polo (AW1) 2019-2021
Taigo (CS1) 2022-2022 >
Tiguan (AD1) 2019-2020
Tiguan Allspace (BW2) 2019-2021
Touran (5T1) 2019-2022 >
T-Cross (C11) 2019-2022 >
T-Roc Cabriolet (AC7) 2019-2022 >
T-Roc (A11) 2019-2022 >

DPBA engine 131 hp
Golf SV/Sportsvan (AN1) 2019-2021
Golf VII (BQ1) 2019-2020
Golf VII Estate (BV5) 2019-2021
Golf VIII (CD1) 2020-2022 >
Golf VIII Estate (CG5) 2020-2022 >

DPBC engine 114 hp
Caddy/Caddy Maxi (SBx) 2021-2022 >

DPBE engine 131 hp
Tiguan (AD1) 2019-2020
Tiguan (AX1) 2020-2022 >

DFYA engine (1.5 eTSI) 150 hp
Golf VIII (CD1) (20-) 2020-2022 >
Golf VIII Estate (CG5) 1.5 2020-2022 >


Application in Skoda cars
DPCA 150 hp engine
Kamiq (NW4) 2019-2022 >
Karoq (NU7) 2019-2022 >
Kodiaq (NS7) 2019-2022 >
Octavia III (5E3/5E5) 2019-2020
Octavia IV (NX3/NX5) 2020-2022 >
Scala (NW1) 2019-2022 >
Superb III (3V3/3V5) 2019-2022 >


Application in Audi cars
DPCA 150 hp engine
A1 Sportback (GBA) 2019-2022 >
A1 citycarver/allstreet 2019-2022 >
A3 Convertible (8VE) 2019-2021
A3 Saloon (8VM) 2019-2020
A3/A3 Sportback (8VK/8VF) 2019-2020
A3 Sportback (8YA) 2020-2022 >
A3 Saloon (8YS) 2020-2022 >
Q2 (GAB) 2019-2020
Q2 (GAG) 2020-2022 >
Q3 (F3B) 2019-2022 >
Q3 Sportback (F3N) 2019-2022 >


Application in SEAT cars
DPCA 150 hp engine
Arona (KJ7) 2019-2021
Arona (KJP) 2021-2022 >
Ateca (KH7) 2019-2020
Ateca (KHP) 2020-2022 >
Ibiza (KJ1) 2020-2021
Ibiza (KJG) 2021-2022 >
Leon (5F1/5F5) 2019-2020
Leon ST (5F8) 2019-2020
Leon (KL1) 2020-2022 >
Leon ST (KL8) 2020-2022 >
Tarraco (KN2) 2019-2022 >

DPBA engine 131 hp
Leon (5F1/5F5) 2019-2020
Leon ST (5F8) 2019-2020
Leon (KL1) 2020-2022 >
Leon ST (KL8) 2020-2022 >

OEM: T10340, T10504/1, T10554, T10172, T10221A, T10060A, T40098, T10475, T10499A, T10576.
